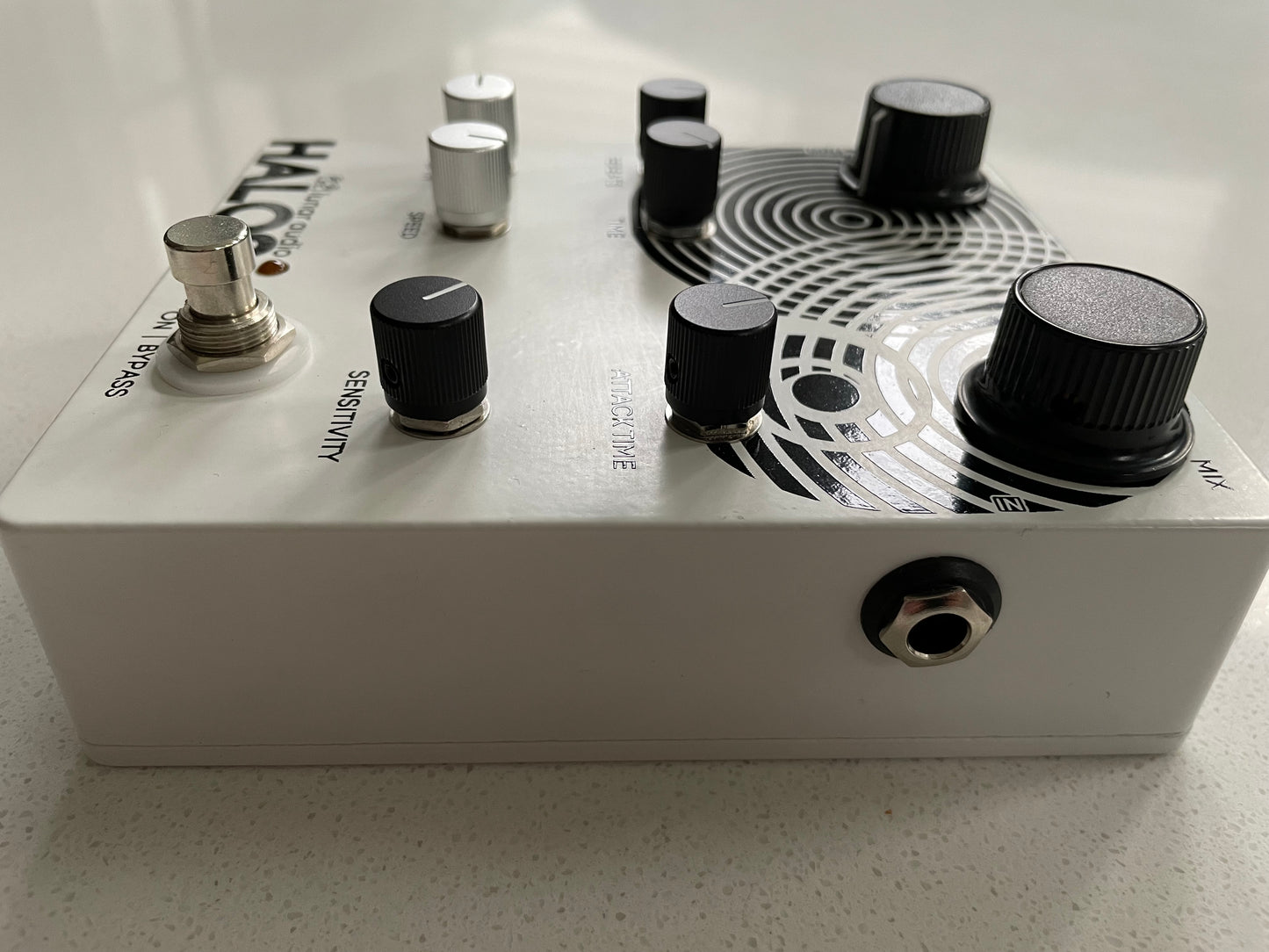

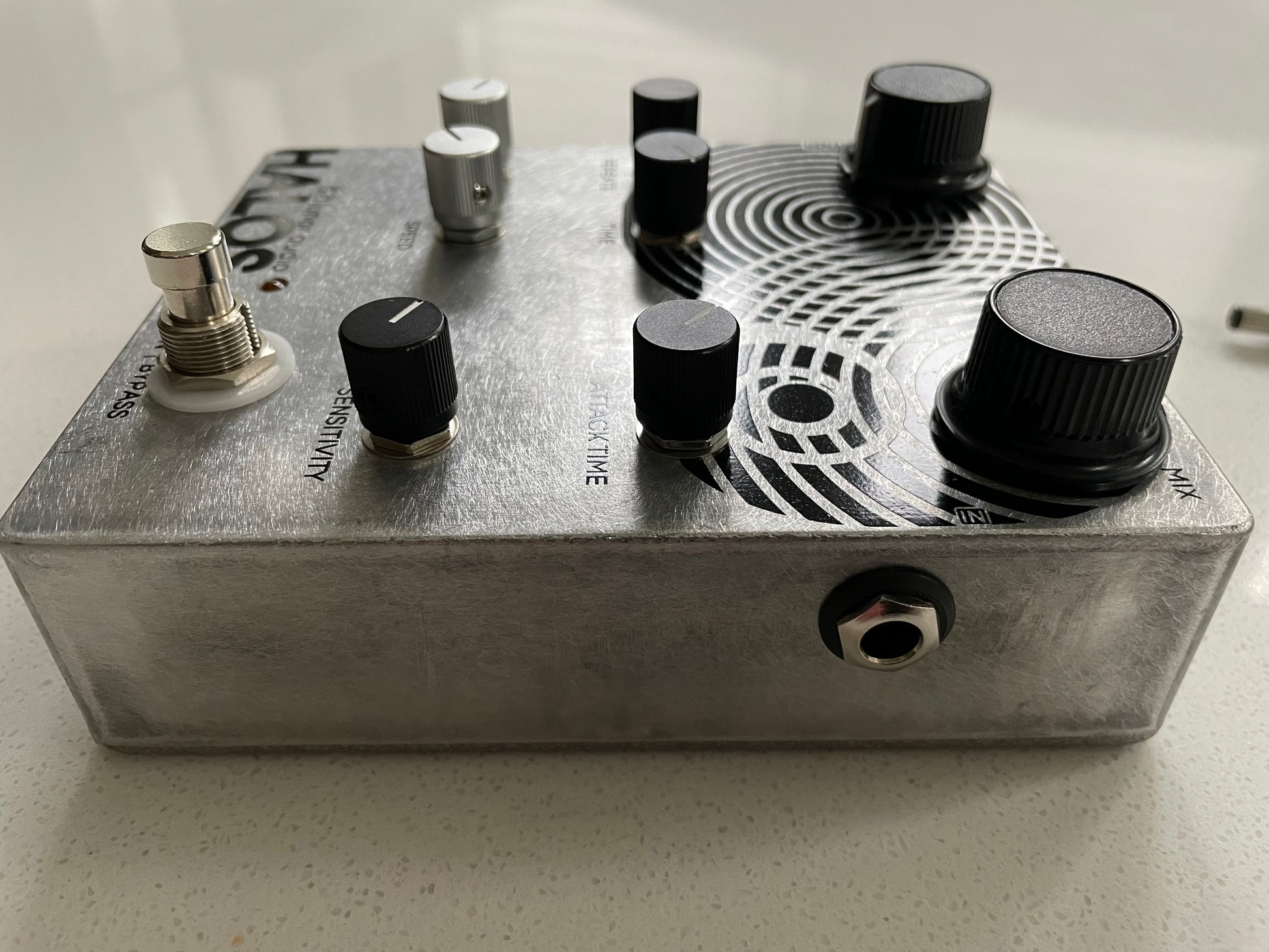

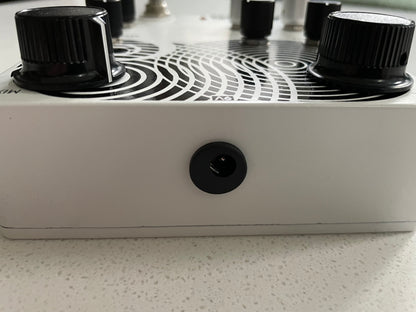

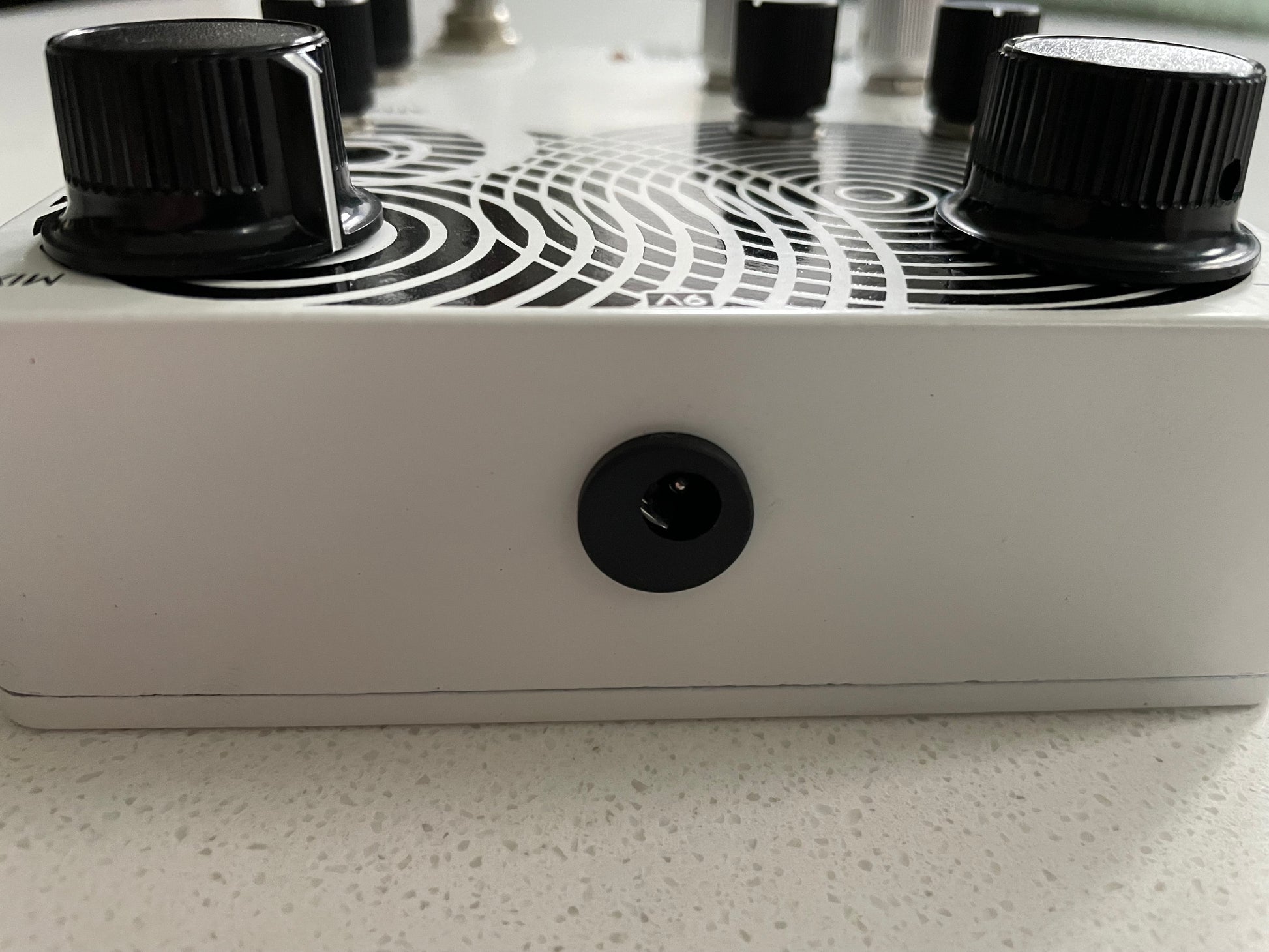

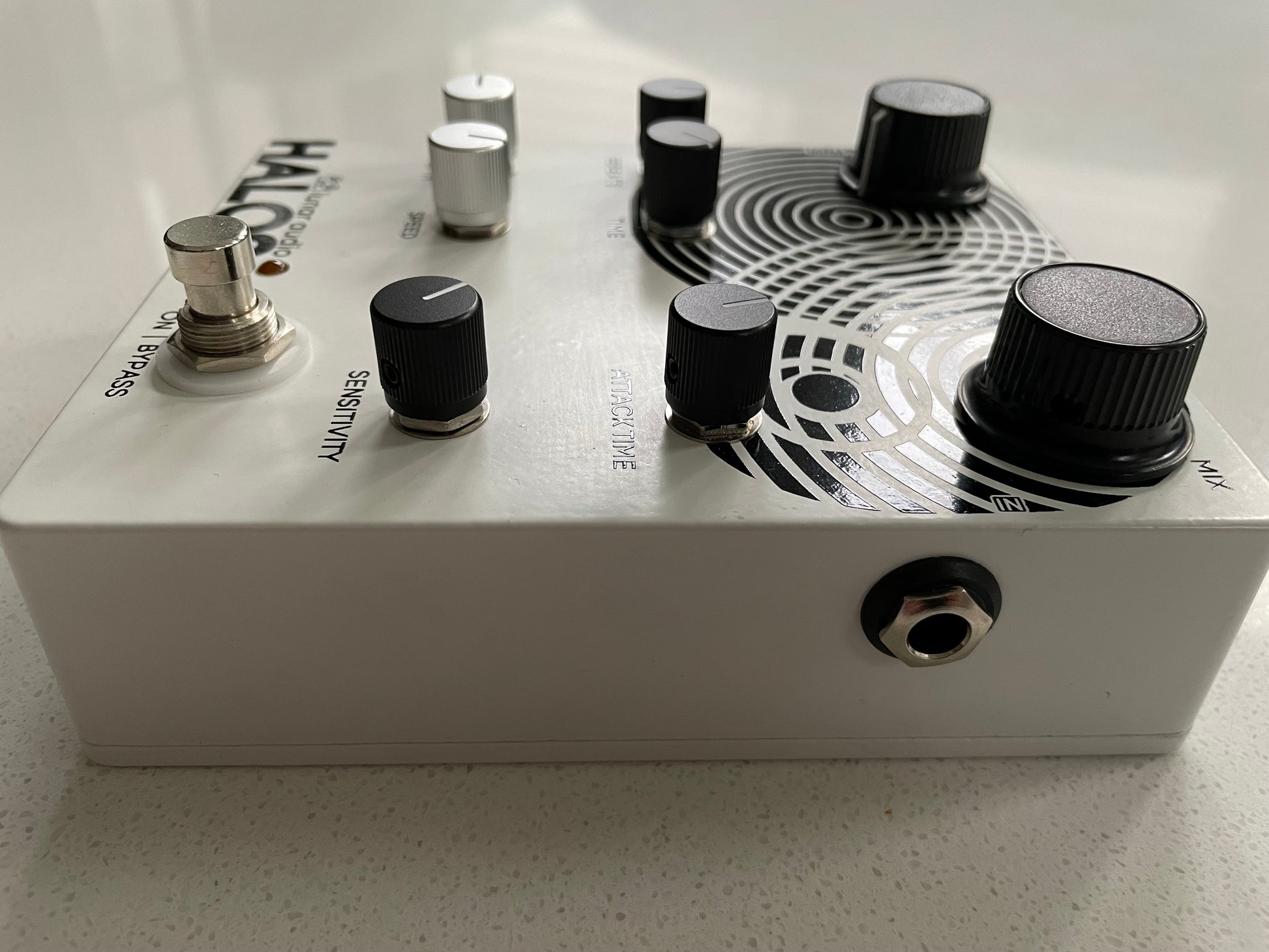

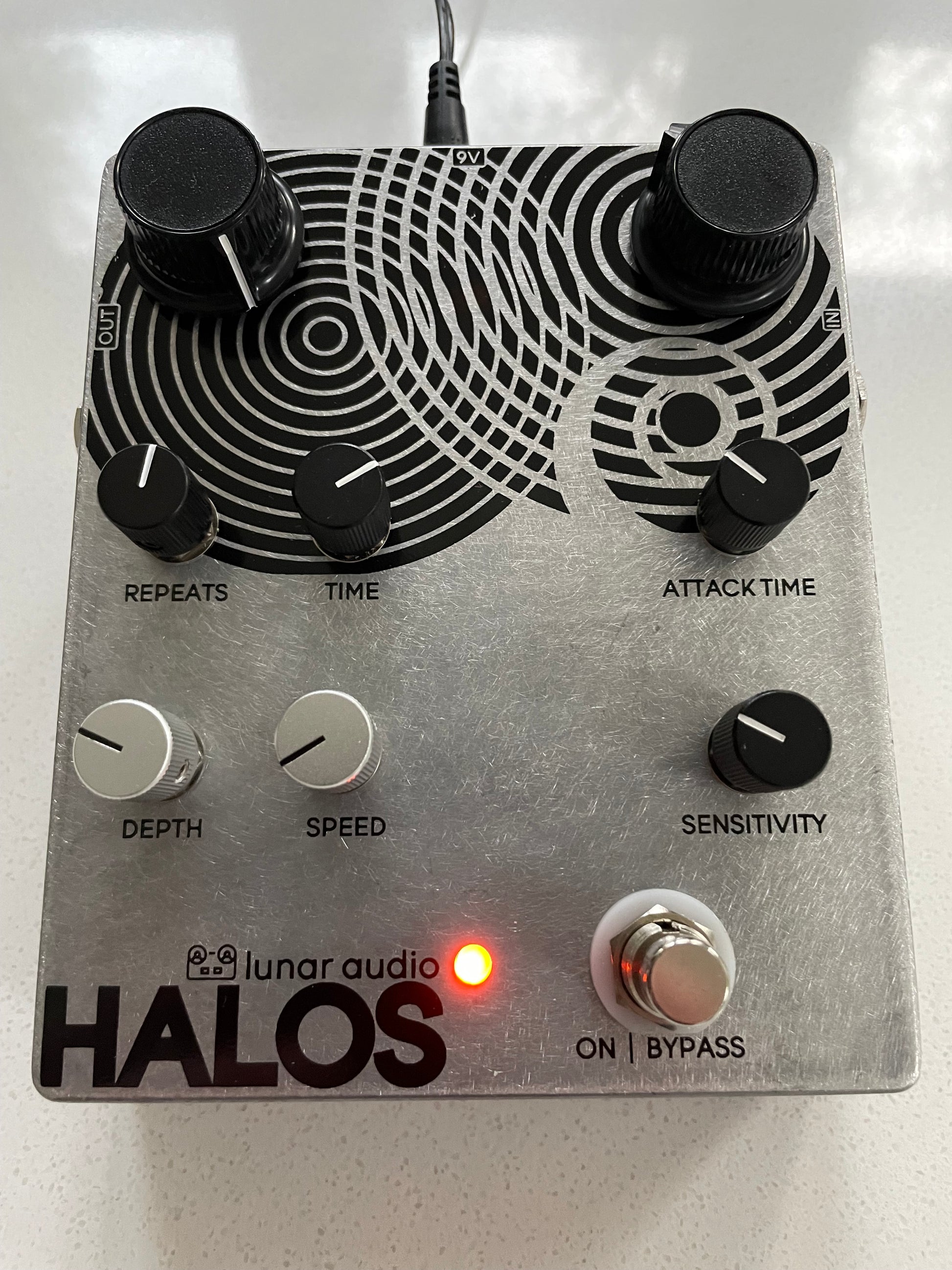

HALOS attack control delay + modulation

HALOS uses an analog attack/swell that feeds into a delay to add lush 'halos' to your tone.  Modulation layers in added dimensions from a subtle '3D' warble, to warping tape delay, rotary speaker effects, reverse sounds, and cello-like swells.  Halos is designed to give a lush wall of textured sustain and full tone, without the washout of digital reverbs.

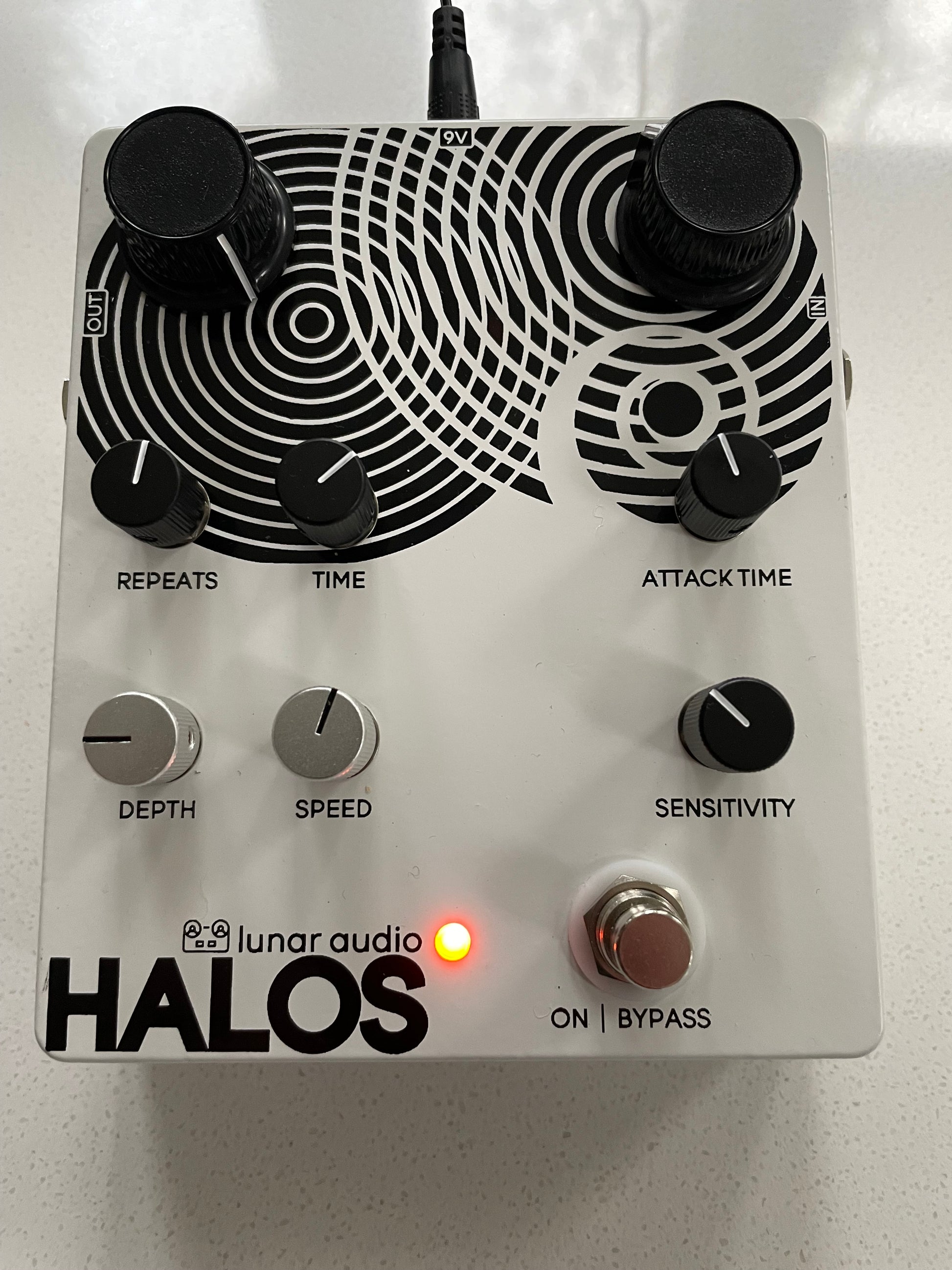

·   Mix – Adjusts the ratio of dry (unaffected) and wet (effected) signals

 ·   Volume – Sets the overall output level.  At full clockwise the output has a gain of 3

·   Attack Time – Determines how quickly the wet signal rises to full volume

·   Sensitivity – Sets the threshold at which the attack swell will be triggered

·   Time – Sets the delay time (40ms to 650ms)

·   Repeats – Controls the number of delay echoes, from a single repeat to infinite feedback

·   Depth – Controls the intensity of modulation applied to the wet signal

·   Speed – Sets the rate of the modulation effect

·   On / Bypass – True bypass switch

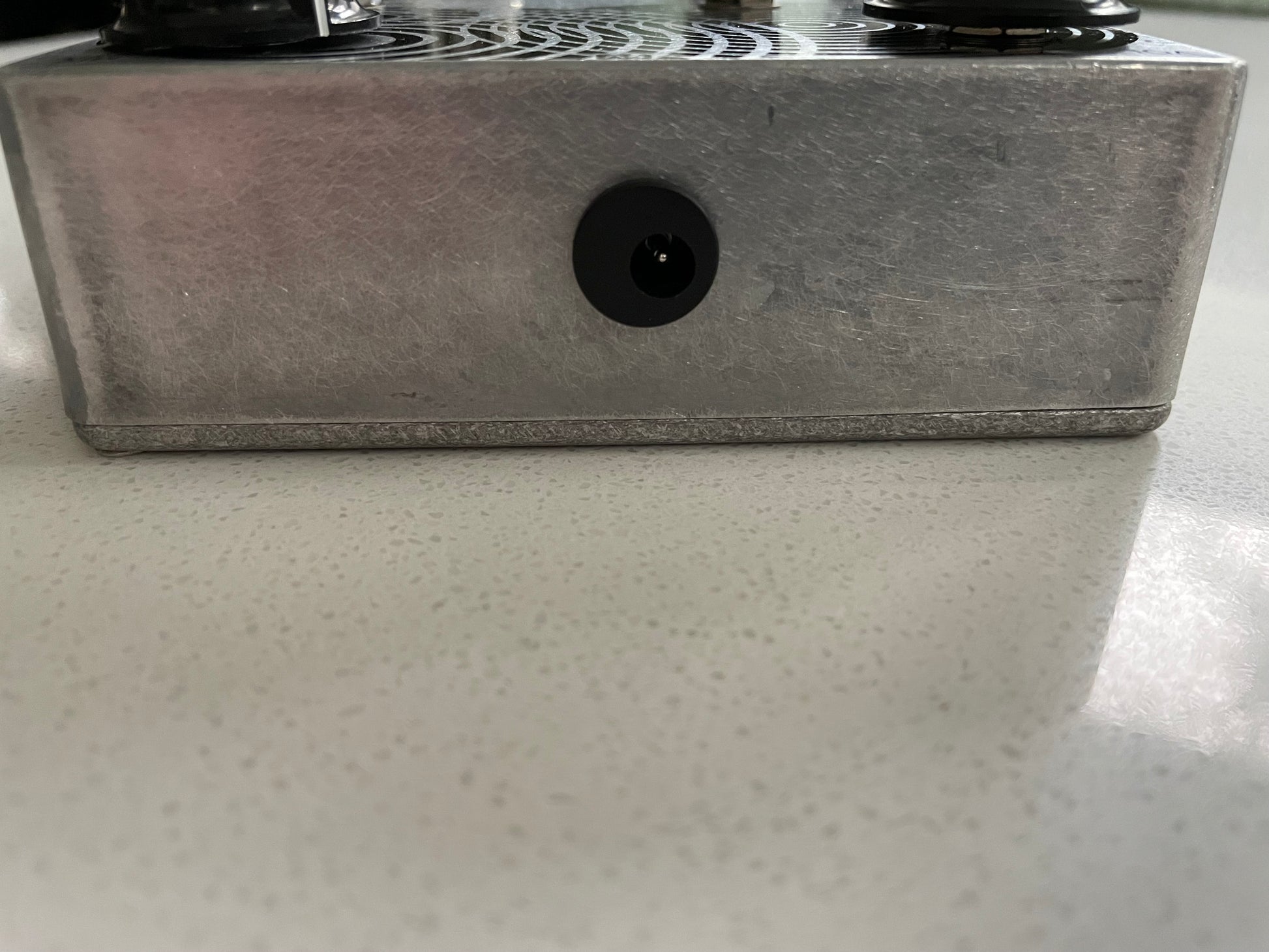

·   Power: 9V DC, 2.1mm center-negative barrel

·   Current draw: 90 mA

·   Input impedance: 470K ohms

·   Output impedance: 150 ohms

·   Size: 145 x 120 x 58mm including knobs (5.7 x 4.7 x 2.3")
